High Speed Doors

Wayne Dalton’s line of high speed doors features five new high speed fabric doors that can be used in both interior and exterior applications.

The following chart can help you determine which Wayne Dalton High Speed Door is best for your specific application. For more information, contact us today at sales@sealitup.ca

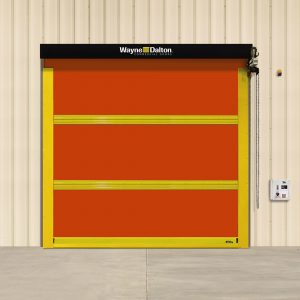

Model 884

Max Width: 24′
Max Height: 18′ at 24′ wide or 20′ at 23′ wide
Open Speed: Up to 55″ per second
Pressure/Wind Resistance: Up to ±​22.0 ​psf or 158 mph
Application/Material Type: Exterior / 3 layers of PVC-coated polyester with 2 layers of polyester weave

Model 883

Max Width: 16′
Max Height: 15′
Open Speed: Up to 65″ per second
Pressure/Wind Resistance: Up to ±​4.0 psf or 76 mph​​
Application/Material Type: Exterior / 3 layers of PVC-coated polyester with 2 layers of polyester weave

Model 882

Max Width: 16′
Max Height: 15′
Open Speed: Up to 65″ per second
Pressure/Wind Resistance: Up to ±​4.0 psf or 76 mph​​
Application/Material Type: Exterior / 3 layers of PVC-coated polyester with 2 layers of polyester weave

Model 881

Max Width: 14′
Max Height: 14′
Open Speed: Up to 70″ per second
Pressure/Wind Resistance: Up to ±​7.5 psf or 90 mph​​
Application/Material Type: ​Interior / 2 layers of PVC-coated polyester with 1 layer of polyester weave

Model 880

Max Width: 12′
Max Height: 12′
Open Speed: Up to 70″ per second
Pressure/Wind Resistance: Up to 3.0 psf or 58 mph
Application/Material Type: Interior / 2 layers of PVC-coated polyester with 1 layer of polyester weave​
Fabric Colours

Red
Blue
Gray
Black

Standard color for guides, brackets, struts and bottom bar is yellow.

RAL Powder Coat

Approximately 200 optional RAL powder coat colors are available for guides, brackets, struts and bottom bar.
